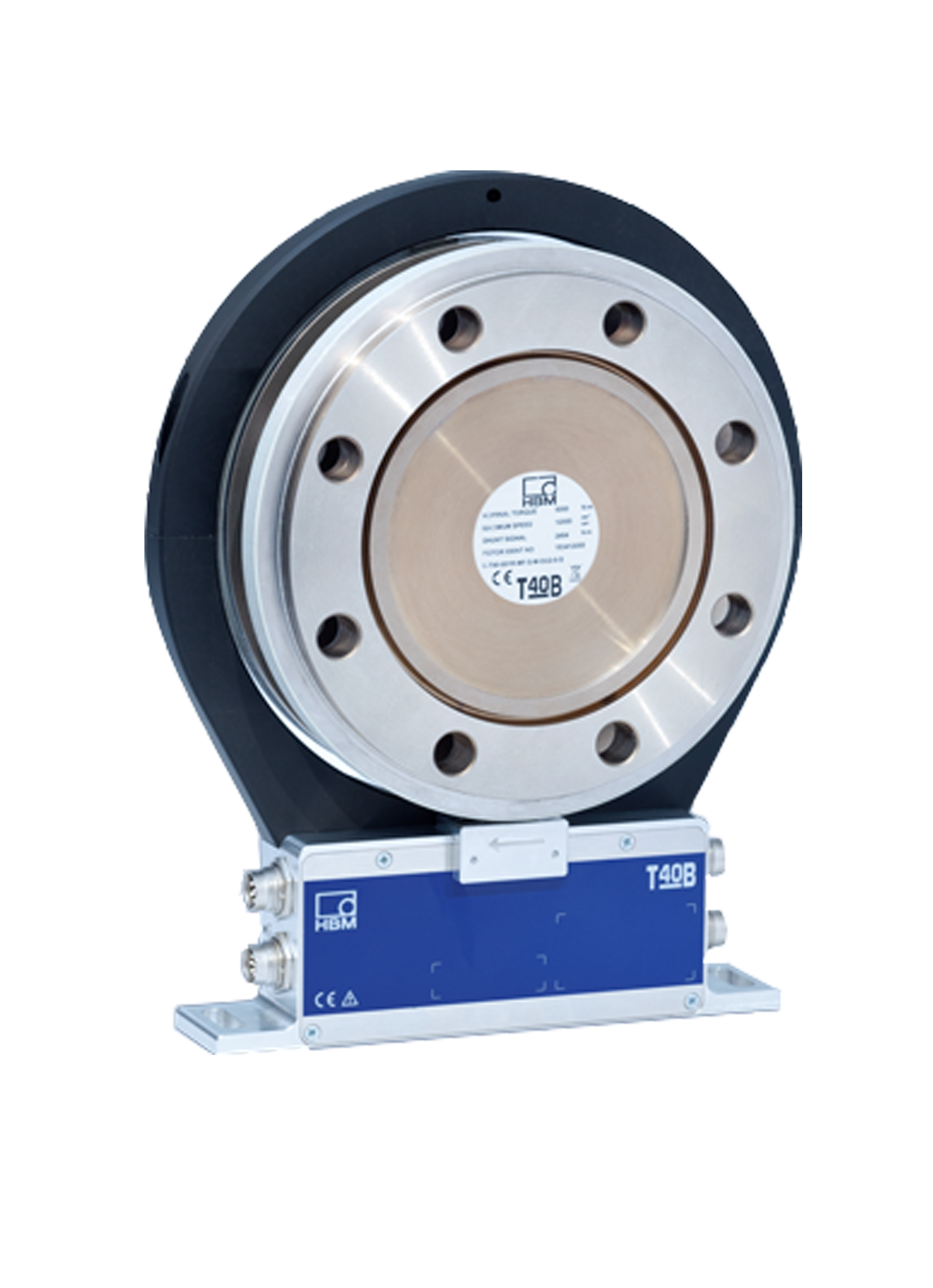

T40B 以高精度、再现性和鲁棒性而著称，非常适合用于静态和动态扭矩测量。包括滞后和高温稳定性，扭矩传感器具有 0.03% 的线性精度。可内置磁学转速测量系统，在传动系统中进行功率测量。非接触设计和数字信号传输确保了更高的安全性，并具有免维护特性。EtherCAT 的 TIM-EC接口模块和 PROFINET 的 TIM-PN 可将扭矩和转速信号与最先进的测试台系统进行集成，确保获得最高的性能和高灵活性。
HBM 精度等级: 0.05
额定扭矩: 50 Nm 到 10 kNm

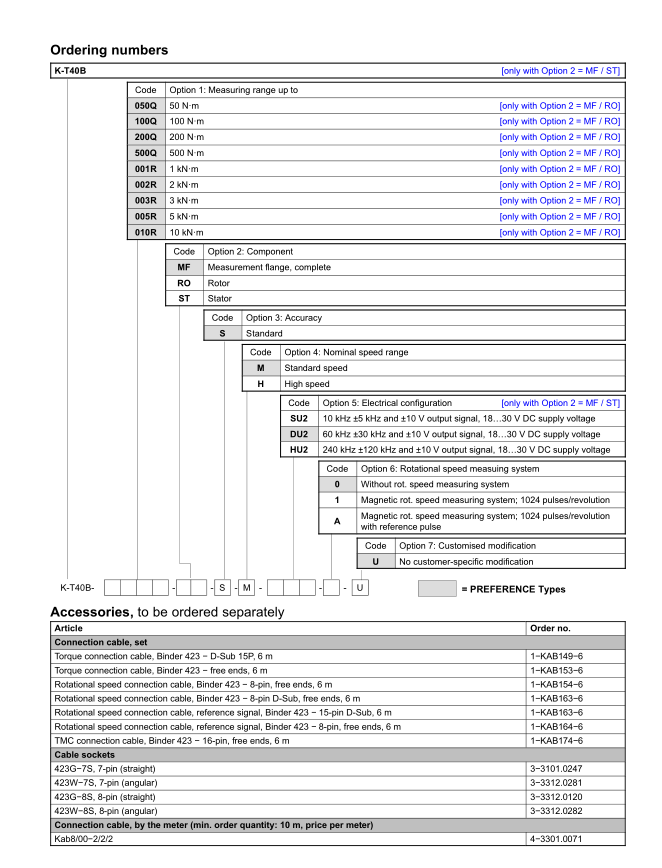

Ordering numbers
K-T40B [only with Option 2 = MF / ST]
Code Option 1: Measuring range up to
050Q 50 N·m [only with Option 2 = MF / RO]
100Q 100 N·m [only with Option 2 = MF / RO]
200Q 200 N·m [only with Option 2 = MF / RO]
500Q 500 N·m [only with Option 2 = MF / RO]
001R 1 kN·m [only with Option 2 = MF / RO]
002R 2 kN·m [only with Option 2 = MF / RO]
003R 3 kN·m [only with Option 2 = MF / RO]
005R 5 kN·m [only with Option 2 = MF / RO]
010R 10 kN·m [only with Option 2 = MF / RO]
Code Option 2: Component
MF Measurement flange, complete
RO Rotor
ST Stator
Code Option 3: Accuracy
S Standard
Code Option 4: Nominal speed range
M Standard speed
H High speed
Code Option 5: Electrical configuration [only with Option 2 = MF / ST]
SU2 10 kHz ±5 kHz and ±10 V output signal, 18…30 V DC supply voltage
DU2 60 kHz ±30 kHz and ±10 V output signal, 18…30 V DC supply voltage
HU2 240 kHz ±120 kHz and ±10 V output signal, 18…30 V DC supply voltage
Code Option 6: Rotational speed measuing system
0 Without rot. speed measuring system
1 Magnetic rot. speed measuring system; 1024 pulses/revolution
A
Magnetic rot. speed measuring system; 1024 pulses/revolution
with reference pulse
Code Option 7: Customised modification
U No customer-specific modification
K-T40B- - - S - M - - - U
Accessories, to be ordered separately
Article Order no.
Connection cable, set
Torque connection cable, Binder 423 − D-Sub 15P, 6 m 1−KAB149−6
Torque connection cable, Binder 423 − free ends, 6 m 1−KAB153−6
Rotational speed connection cable, Binder 423 − 8-pin, free ends, 6 m 1−KAB154−6
Rotational speed connection cable, Binder 423 − 8-pin D-Sub, free ends, 6 m 1−KAB163−6
Rotational speed connection cable, reference signal, Binder 423 − 15-pin D-Sub, 6 m 1−KAB163−6
Rotational speed connection cable, reference signal, Binder 423 − 8-pin, free ends, 6 m 1−KAB164−6
TMC connection cable, Binder 423 − 16-pin, free ends, 6 m 1−KAB174−6
Cable sockets
423G−7S, 7-pin (straight) 3−3101.0247
423W−7S, 7-pin (angular) 3−3312.0281
423G−8S, 8-pin (straight) 3−3312.0120
423W−8S, 8-pin (angular) 3−3312.0282
Con
* 元素路径: body > p > img当前已输入2088个字符, 您还可以输入97912个字符。 |
nection cable, by the meter (min. order quantity: 10 m,
高精度
线性度（包括滞后）仅为0.03%
高温稳定性
比例计量法确保更高的测量精度和稳定性
极具成本效益的高性能扭矩传感器，用于测试台，测量结果具有极高的精度和再现性
可靠
带错误检测的数字传输确保了无干扰数据传输
强度高，坚固耐用
创新数字数据传输提供可靠的测量数据，即使在恶劣的环境条件下
灵活
坚固的磁学转速测量系统
模拟和数字接口，便于与不同测试台系统集成
可选带有参考脉冲的鲁棒磁学转速测量系统，用于获取绝对转子位置
极高灵活性，面向现在和未来的测量任务
